Early wells found on old Sweden homestead sites were dug using hand shovels. They were typically lined with stone to prevent collapse and covered with stone, wood, or, after the mid 19th century, concrete.

Most of these wells have been abandoned and, over time, have collapsed or become filled in with organic debris. Well covers often are absent due to decomposition or scavenging.

Thanks to the owner of one of these old Sweden properties, we have these photos and a description of a large well-preserved dug well.

Description of well:
  • The inside diameter of the well is approximately 4 to 5 feet.
  • The well is covered with a round stone 4-inches thick and 6 feet in diameter. In the center of this cover is a hole 16 inches in diameter.
  • Four, 4-inch square concrete bars rim the opening. Pieces of wood, now mostly decomposed, were interior to the bars. The bars supported a 2-inch-thick square of what is assumed to be concrete.
  • In August 2014, the level of water was about 9.5 feet below the round cap stone. The depth of the water (to a soft bottom) was about 6.5 feet.  The overall depth of the hand-dug well is at least 15 feet.
Interesting facts about the well:
  • It was dug as many as 150 years ago and, except for wooden components, appears to be completely intact and still holds water.
  • The well is located approximately 150 to 300 feet uphill from where the first structures were built.


Dug Wells of Early Sweden, Maine

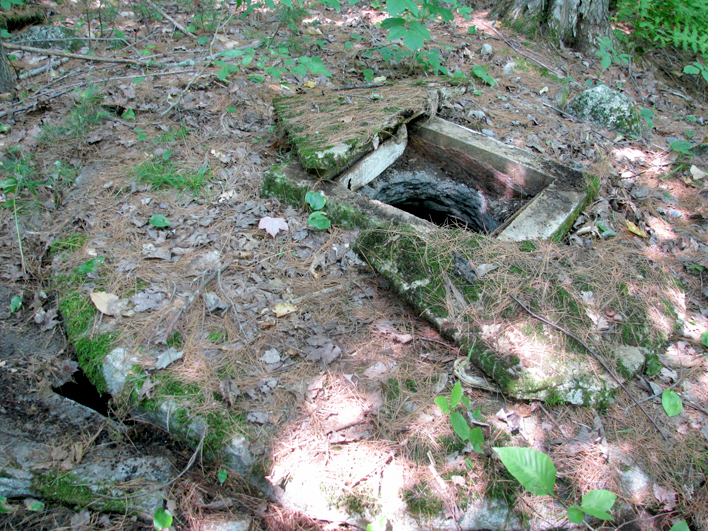

General view of well area.

Edge of the 6-foot diameter round cover stone seen in the lower left of the image.

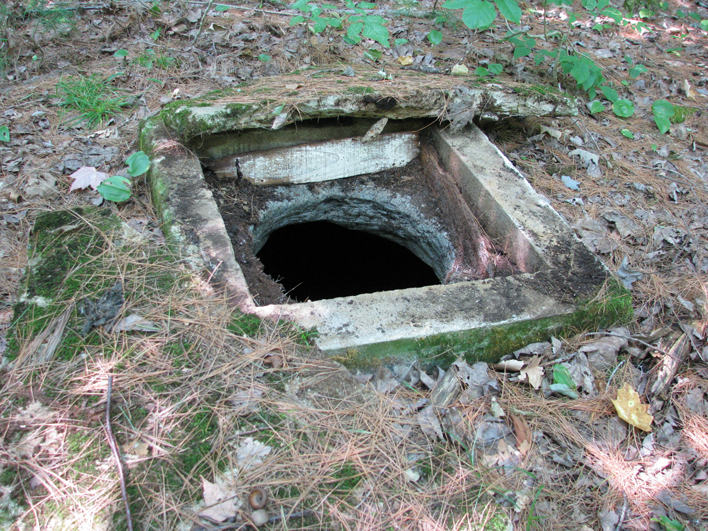

Closer view of the 16-inch-diameter circular opening.

Note that the concrete structure surrounding the opening may be indicative of a well modified later in the 19th century or early 20th century.

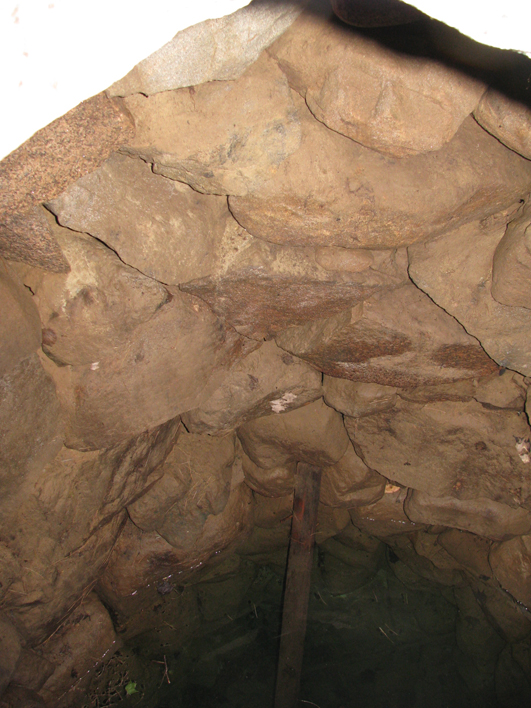

Looking into the well showing the stone wall. Although not easily seen in this photo, there is water in the well shown in the bottom of this photograph.

The metallic-looking object shown in the photo is yet to be investigated. It may be an iron pipe; if so, it may be another sign that the well has been modified over time. The pipe may have extended to the house and a pump (hand or electric) used to draw water from the well. These pipes usually indicate an early 20th century modification (see link).

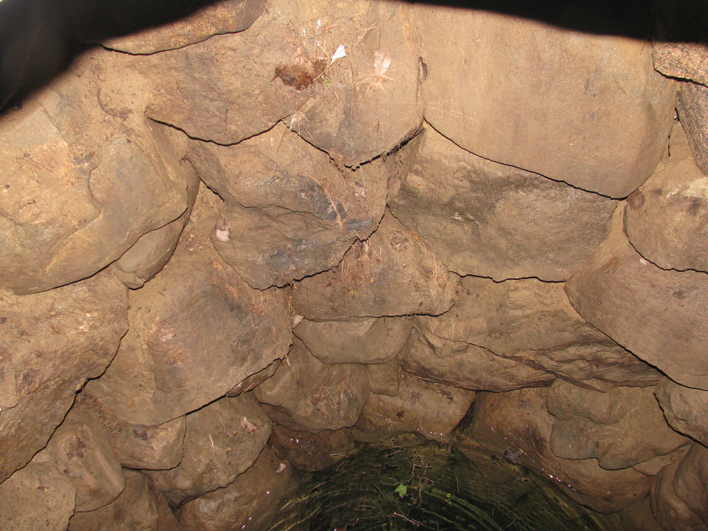

Closer view of inner stone wall.

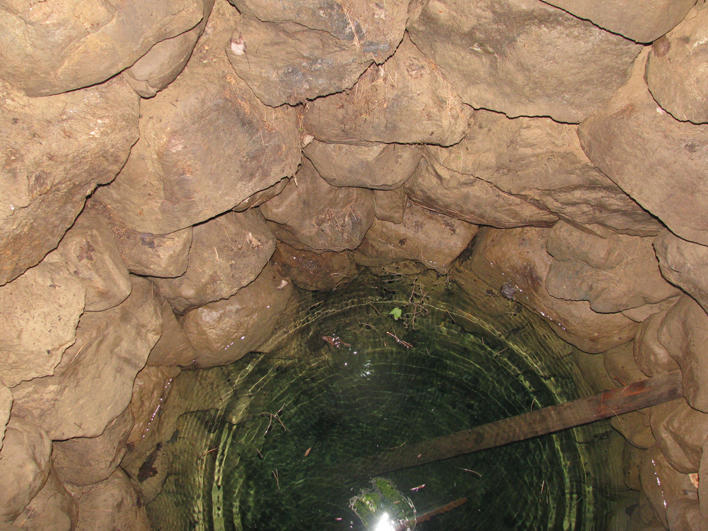

Another view of the inner stone wall that more clearly shows the water level.

For more information about dug well (and other stone structures) in the northeast, check out this link.
